Product Details:
|
| Cell: | 18650-36V | Application: | Electric Bicycles/Scooters, Electric Scooter |
|---|---|---|---|
| Charging Limit Voltage: | 42V | Nominal Capacity: | 7.8Ah |
| Pack Assembly Model: | 10S3P | Nominal Voltage: | 36V |
| Overall Size: | 334*68*42mm | Model: | SKQ-BY10-046 |
| Discharge Temperature Range: | -20-60 ℃ | Charging Mode: | CC/CV |
| High Light: | 10Ah 36V Electric Bike Lithium Battery,36V Electric Bike Lithium Battery 10S3P,10S3P Waterproof Lithium Ion Battery Pack |
||

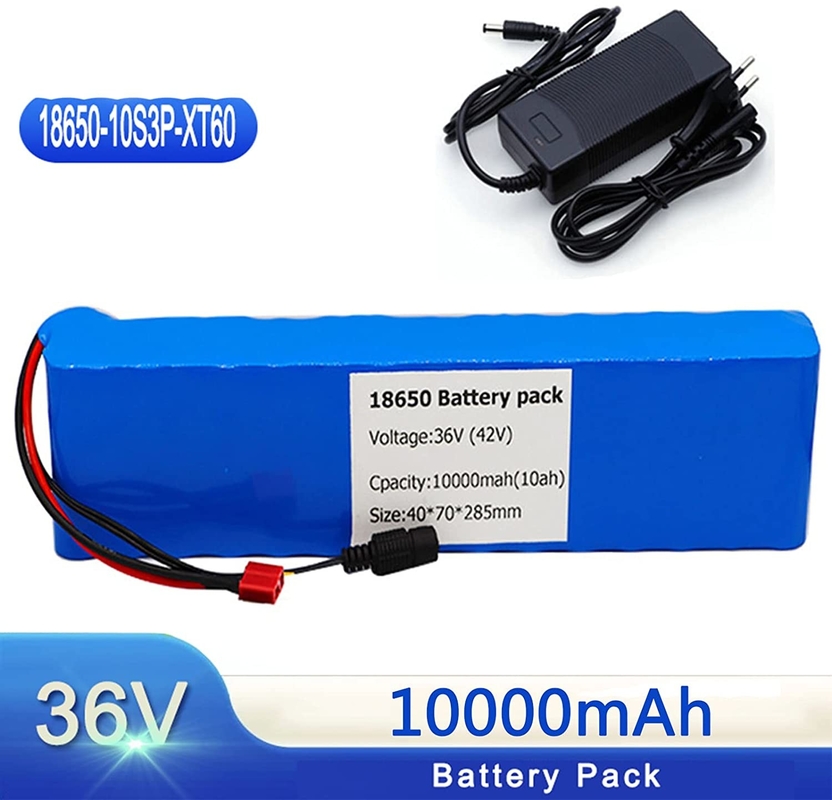

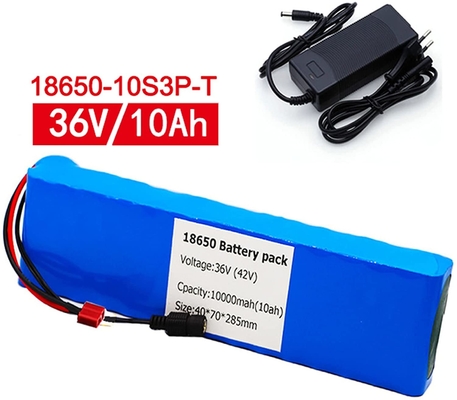

36V Electric Bike Lithium Battery 10Ah 10S3P Waterproof Li-ion Battery Pack
|
Rated capacity
|
10AH(10000mAh)
|
|
Rated voltage
|
36V
|
|
Technical description
|
3.7V 18650 Cell
|
|
Unit combination
|
3-parallel 10 series
|
|
Battery size
|
40*70*280mm (± 2mm)
|
|
Weight
|
about 1.5kg
|
|
Number of batteries (parallel * series)
|
30pcs
|
|
Discharge voltage
|
30/ -1V
|
|
Charging voltage
|
42V
|
|
Rated discharge current
|
15A
|
|
Maximum instantaneous discharge current
|
30A
|
|
Maximum continuous discharge current
|
15A
|
|
Charging Mode
|
CC/CV
|
|
Standard charging current
|
2A
|
|
Charging time of standard charging current
|
5-7h
|
|
Charging temperature range
|
0-45 ℃
|
|
Discharge temperature range
|
-20-60 ℃
|
