Product Details:
|
| Output Interface: | DC, USB/DC, DC, USB/DC, Triple USB, Car Port, AC | Input Interface: | Usb, DC, AC |
|---|---|---|---|
| Function: | Solar Panel Charge, Quick Charge Support, Solar Panel Charge, LED Display | Private Mold: | NO, Yes |
| Type: | Fast Charging | Battery Type: | 18650 Lithium Battery |
| Weight: | 10kg | Socket Standard: | For USA/Canada, Universal |
| Protection: | Short Circuit Protection | Output Power: | S600-S1000 |
| Operating Temp: | -10℃ - 40℃ ( 14°F - 104°F) | Size: | L340*W178*H230 MM |
| Input: | 12-24V (DC/Solar 120W Max) | Port: | Yantian |
| Highlight: | LiFePO4 Outdoor Power Station,Li Ion NCM Outdoor Power Station,24V Outdoor Portable Power Station |
||

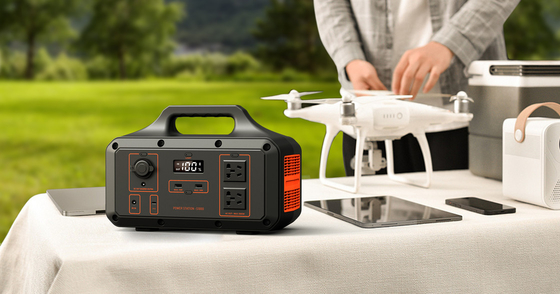

Standby Outdoor Outing,Barbecue Essential 1.7 Hours Full Charging Station Power Station
|
GENERAL |
Model
|
AB600F
|
AB1000F
|
AB600S
|
AB1000S
|
|||
|
|
Capacity
|
512Wh
|
768Wh
|
680Wh
|
1021Wh
|
|||
|
|
Cell Chemistry
|
LiFePO4
|
|
Li-ion NCM
|
|
|||
|
|
Single Cell Capacity
|
40Ah@3.2V/pcs
|
|
46Ah@3.7V/pcs
|
|
|||
|
|
Lifecycle
|
4000+ Cycles to 80% Capacity
|
|
1000+ Cycles to 80% Capacity
|
|
|||
|
|
Indicator
|
APP / LED Screen
|
|
|
|
|||
|
|
Storage Temp.
|
-4-140℉ (-25-60℃)
|
|
|
|
|||
|
|
Operating Temp.
|
32-104℉ (0-40℃)
|
|
|
|
|||
|
|
Material
|
ABS+PC
|
|
|
|
|||
|
|
Weight
|
7.6±0.5kg
|
9.3±0.5kg
|
7.2±0.5kg
|
8.7±0.5kg
|
|||
|
|
Dimensions
|
335*178*225mm
|
|
|
|
|||
|
|
Battery Management System
|
OVP,OCP,ODP,SCP,etc.
|
|
|
|
|||
|
|
Solar Charge System
|
MPPT Charge Controller
|
|
|
|
|||
|
INPUT |
DC 7909
|
12-24V (DC/Solar 120W Max)
|
|
|
|
|||
|
|
USB-C
|
100W Max
|
|
|
|
|||
|
OUTPUT
|
AC Outlet |
100-240V@50/60Hz
|
|
|
|
|||
|
|
|
600W Max
|
1000W Max
|
600W Max
|
1000W Max
|
|||
|
|
USB-C
|
100W Max
|
|
|
|
|||
|
|
USB-A
|
5-12V (18W Max)
|
|
|
|
|||
|
|
DC 5525
|
12V/10A (120W Max)
|
|
|
|
|||
|
|
Car Port
|
12V/10A (120W Max)
|
|
|
|
|||
